Quick Overview
This system is the ideal solution for class M1 applications, with trimless edges. This access floor system consists of complete die cast aluminum components that are typically used in hi-tech environments such as biomedical, microelectronic, pharmaceutical and laboratory facilities.
Select finished floor height above.
Additional Information
- Description
Surface: Forbo Colorex SD.
System rating: 1500 lbs per square inch.
- A minimum purchase of 152 square feet is required.
- Pricing listed above is per square foot. (Purchased in 4 ft increments.)
- Freight and Installation are not included. -- Installation instructions available online.
______________________________________________
This product is proudly made in America and is GSA-approved.
These standard aluminum grated panels are designed to hold up to 1500 pounds and are interchangeable with the 3500 Series. Easy installation offers many design options and the flexibility to modify the floor system as your flooring needs change.
The 1500-pound series is the industry standard for clean environment applications such as manufacturing areas, clean rooms, and standard walkways. These die-cast panels provide a corrosion-resistant fit throughout the entire floor system.
The 1500 Series is also available with or without stringers and corner-lock holes.
______________________________________________
In-Depth Product Description

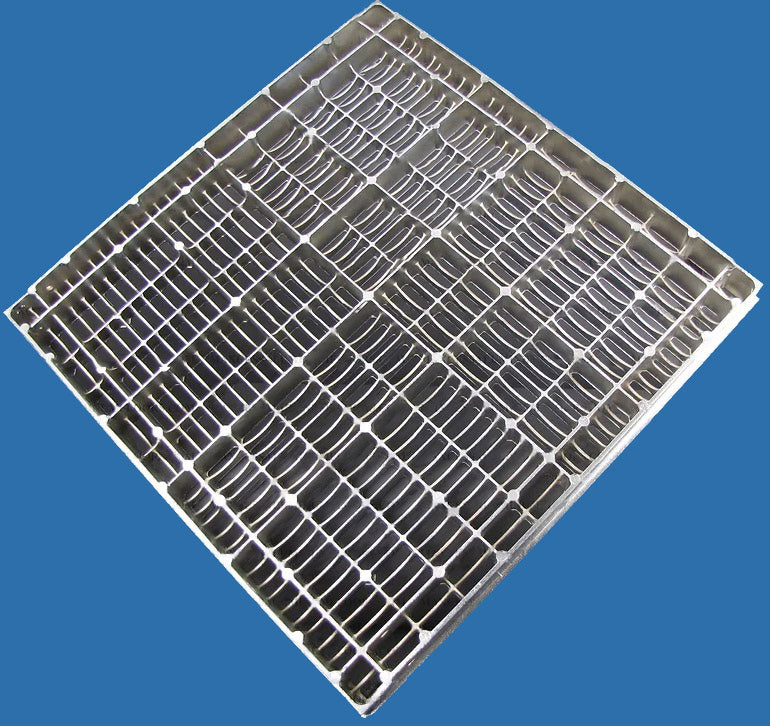

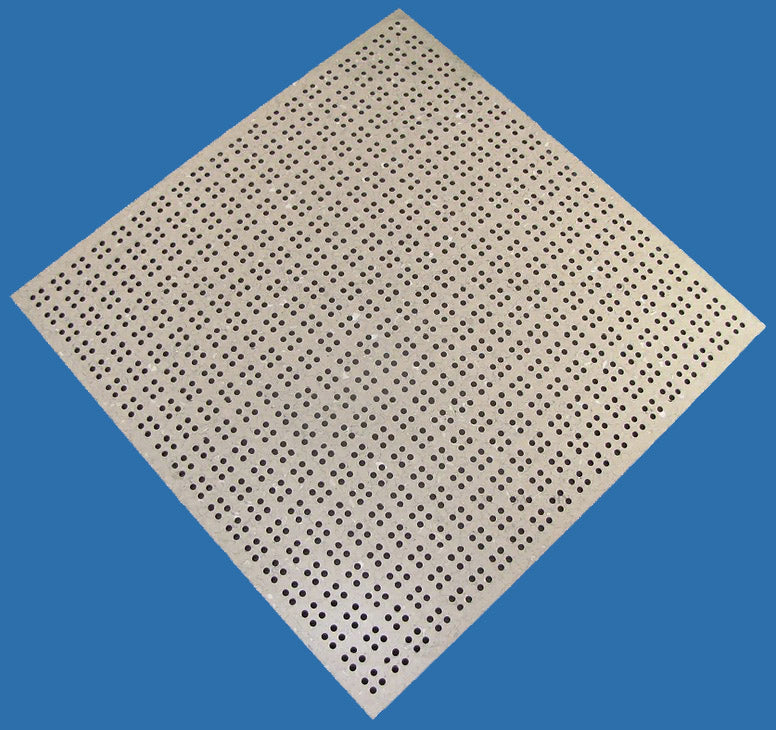

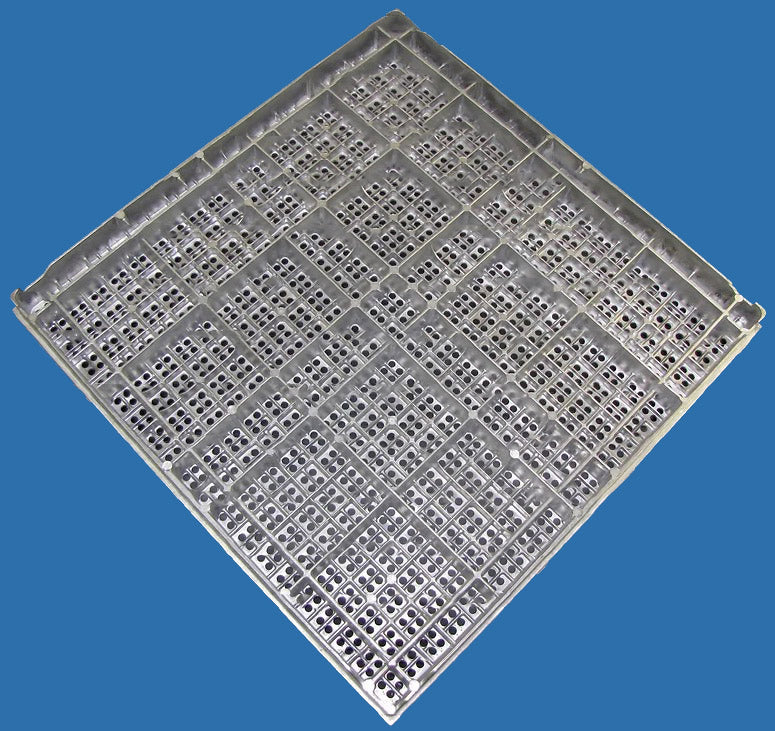

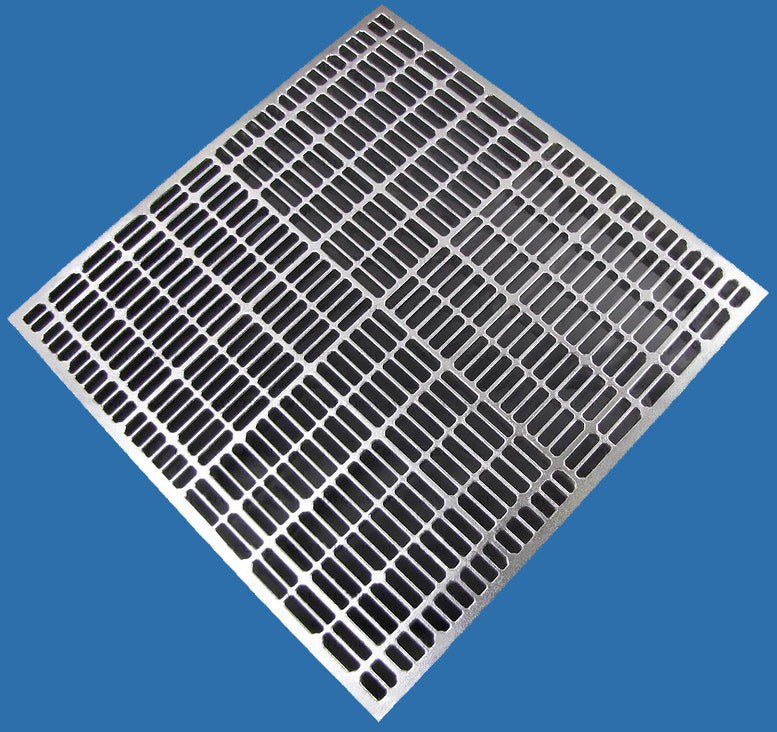

This aluminum panel system kit consists of panels that are 24” x 24” and are lightweight for ease of handling.
These rigid die-cast aluminum panels meet class A fire ratings and contain no ferrous materials to disrupt magnetic fields. A conductive gasket ensures continuous conductivity.
The kit includes the adhesive that holds the pedestal bases to the sub-floor, the pedestal assemblies consisting of an all-aluminum base and adjustable head (1" up and 1" down), 2 ft stringers with stainless steel screws and the 24” x 24” panels (which fit on the pedestal head.)
Forbo Colorex SD is a static dissipative homogeneous floor covering in tile format. The technology ensures permanent ESD properties throughout the life of the product, regardless of the humidity level of the area. Because of the dense of network of conductive veins, static charges flow easily through the floor to the earth.
Colorex SD can withstand and control most demanding conditions and offers a suitable solution for highly sensitive areas such as cleanrooms and for most demanding production sites in the electronics, life sciences and manufacturing industry.
______________________________________________
By purchasing and installing this floor, the purchaser assumes all liability of complying with federal, state and local building code compliance, fire prevention, ADA Accessibility and Seismic Bracing or any other building code requirement enforced in a customer’s local area. This includes, but is not limited to Reservations, Parishes and County Jurisdictions.
