GroundFloor™ ESD Classic

GroundFloor™ ESD Classic

GroundFloor™ ESD Classic glue down vinyl tile provides lasting ESD protection with lifetime electrical properties.

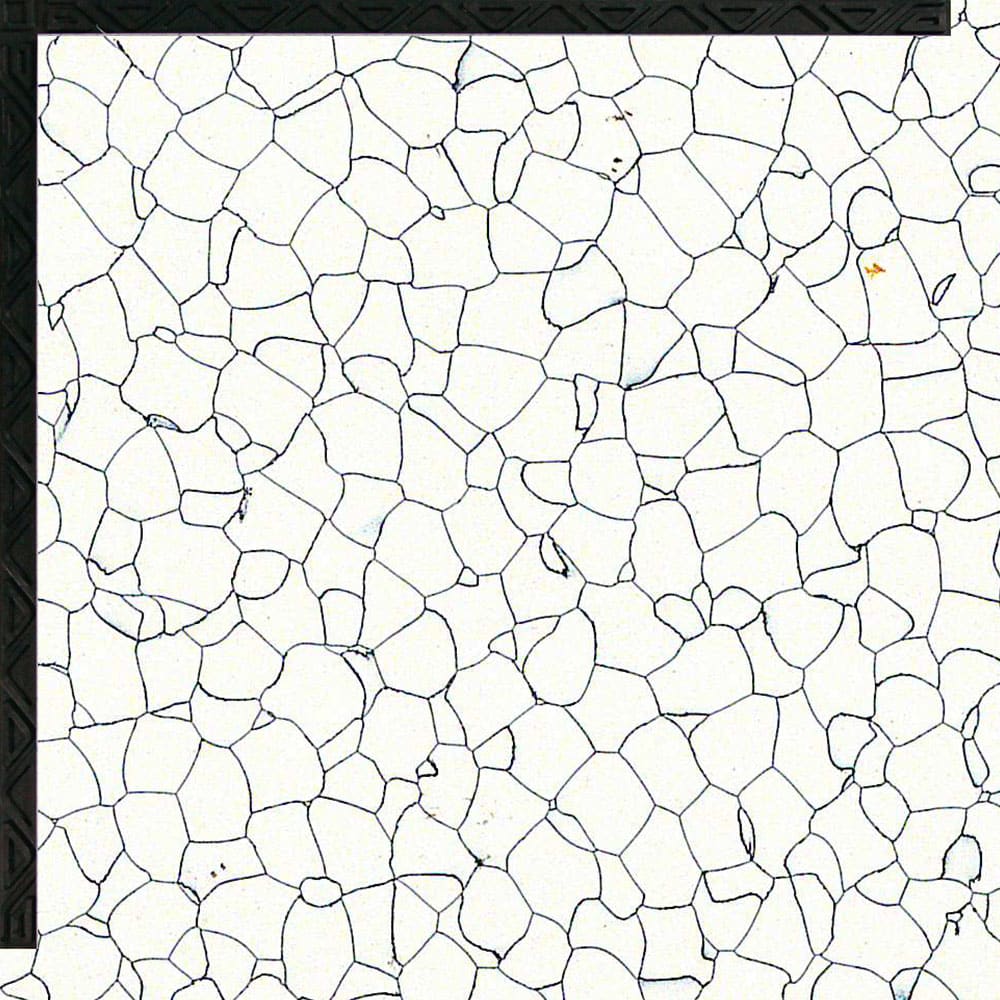

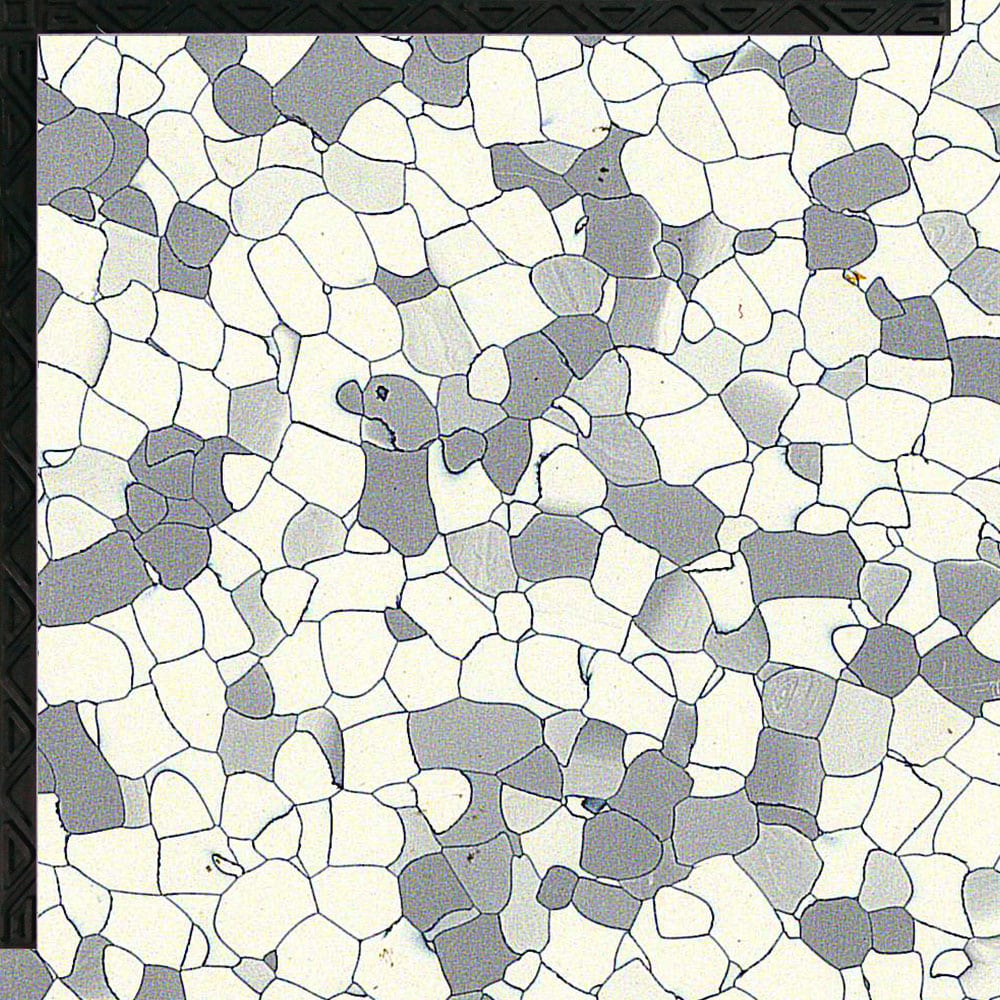

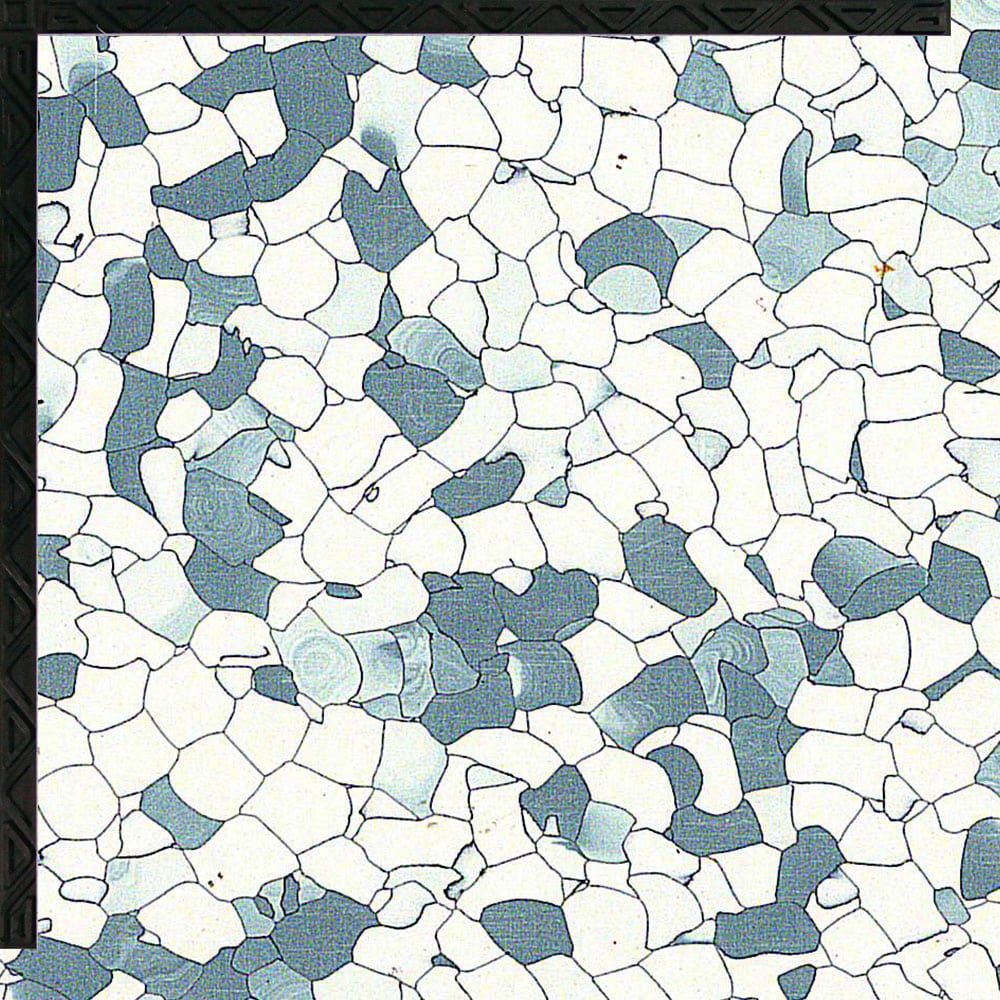

GroundFloor™ ESD Classic glue-down vinyl comes in 3 stock colors and a variety of sizes and thicknesses to meet your requirements.

Pricing listed is per tile.

Additional Information

Model
GESDC
Notes
Lead time:
$8.50
$8.50
Sale Sold out
Color
View full details

GroundFloor™ ESD Classic tiles have "built in" ESD control and comply with the requirements of ESD S20.20.

GroundFloor™ ESD Classic tile is a high value, low-cost, reliable, and attractive alternative for your static-protection needs. This direct glue-down option is a perfect alternative to our FreeStyle™ ESD Classic interlocking floor when installing in open spaces, where downtime isn't a concern and where subfloors are ready to accept glue-down flooring.

GroundFloor™ ESD Classic is constructed with a rugged, dense polymer formulation, with "top to bottom" conductive veins providing permanent and guaranteed lifetime conductivity. No topical coatings are required to guarantee ongoing electrical performance. Three Stock colors are available. Tiles are available in 18.5" x 18.5" or 24" x 24" sizes. Standard thickness is 2mm. 3mm product is available as Special Order items for 24" size.

PHYSICAL PROPERTIES

FORMAT

TILE

TILE

TILE

Dimensions

18.5” x 18.5” x 2mm

24” x 24” x 2mm

24” x 24” x 3mm

Weight

1.9 lbs

3.2 lbs

4.2 lbs

Referencce Specification ASTM E-648

Conforms

Conforms

Conforms

Critical Radiant Flux ASTM E-648

Class 1 Fire Rating

Class 1 Fire Rating

Class 1 Fire Rating

Smoke Density E-662

<450

<450

<450

ELECTRICAL PROPERTIES

Resistance, Ohm per ESD STM 7.2

2.5 x 10^4
to <1 x 10^6

2.5 x 10^4
to <1 x 10^6

2.5 x 10^4
to <1 x 10^6

Walking Voltage, Volts per ESD STM 97.2

< 50 Volts

< 50 Volts

< 50 Volts

GroundFloor™ ESD Classic glue-down vinyl flooring complies with the requirements of ESD S20.20.

Chemical Resistance GroundFloor™ ESD Classic has been tested for solvent/stain resistance per ASTM F-925-96 against a number of fluids, such as oils, acids, solvents, and staining agents.

Walking voltage results based on third-party certified laboratory testing. Results will vary depending on site conditions and footwear used. No ESD floor product will perform as designed without appropriate conductive footwear.

LIMITED 10-YEAR WARRANTY

All GroundFloor™ ESD Classic tiles are backed by a lifetime electrical warranty and a 10-year limited wear warranty.

INSTALLATION

For glue-down installations of all GroundFloor™ ESD Classic products, the subfloor surface must be properly prepared and free of moisture, dirt, oils, and other foreign materials to ensure a reliable bond with the adhesive.

REGULAR MAINTENANCE

GroundFloor™ ESD Classic ESD Products are easy to maintain. Like all vinyl ESD floor products, a regular maintenance program is required to maintain the aesthetics and ESD performance.

ARCHITECTURAL SPECIFICATIONS

GroundFloor™ ESD Classic Resilient Flooring should have an electrical resistance of between 2.5 x 10^4 and 1 x 10^6 Ohms for conductive flooring applications and 1 x 10^6 to 1 x 10^9 Ohms for static dissipative applications as measured pursuant to ANSI/ESD 7.1. This product shall offer a lifetime electrical, and 10-year limited wear warranty.
