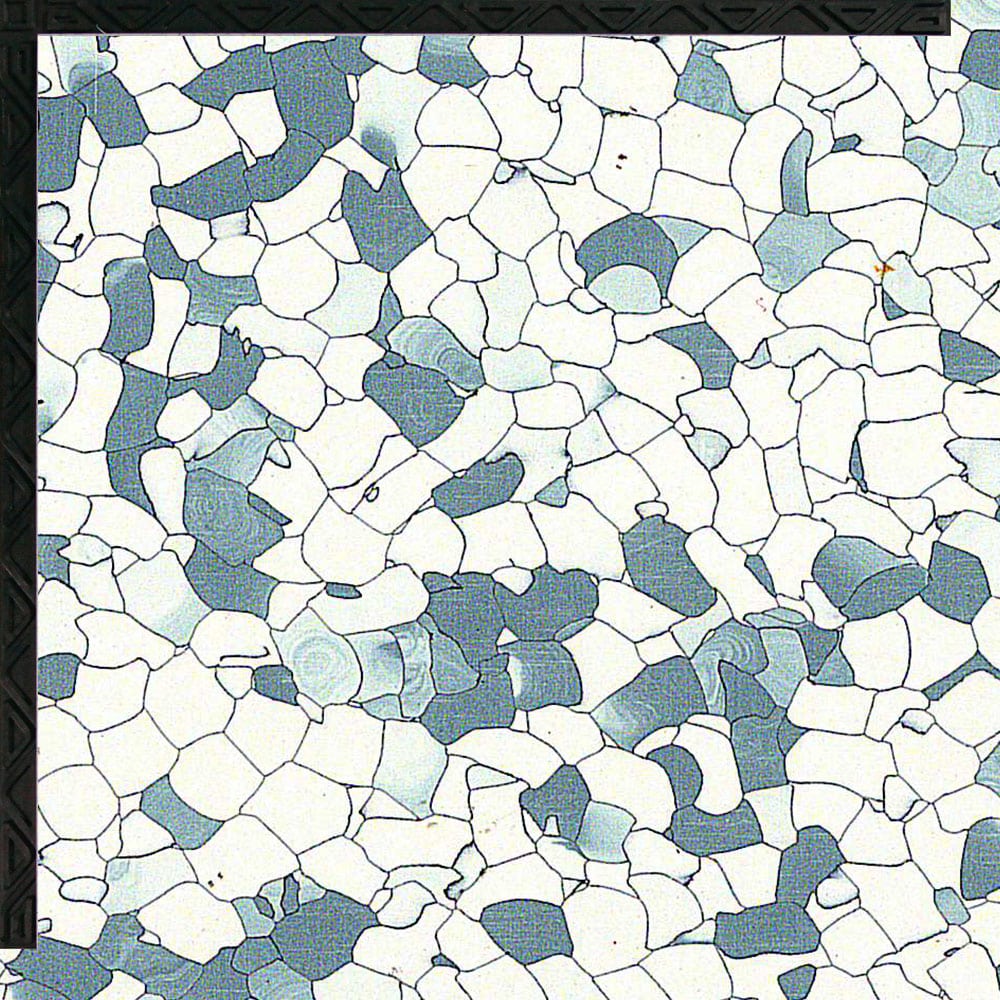

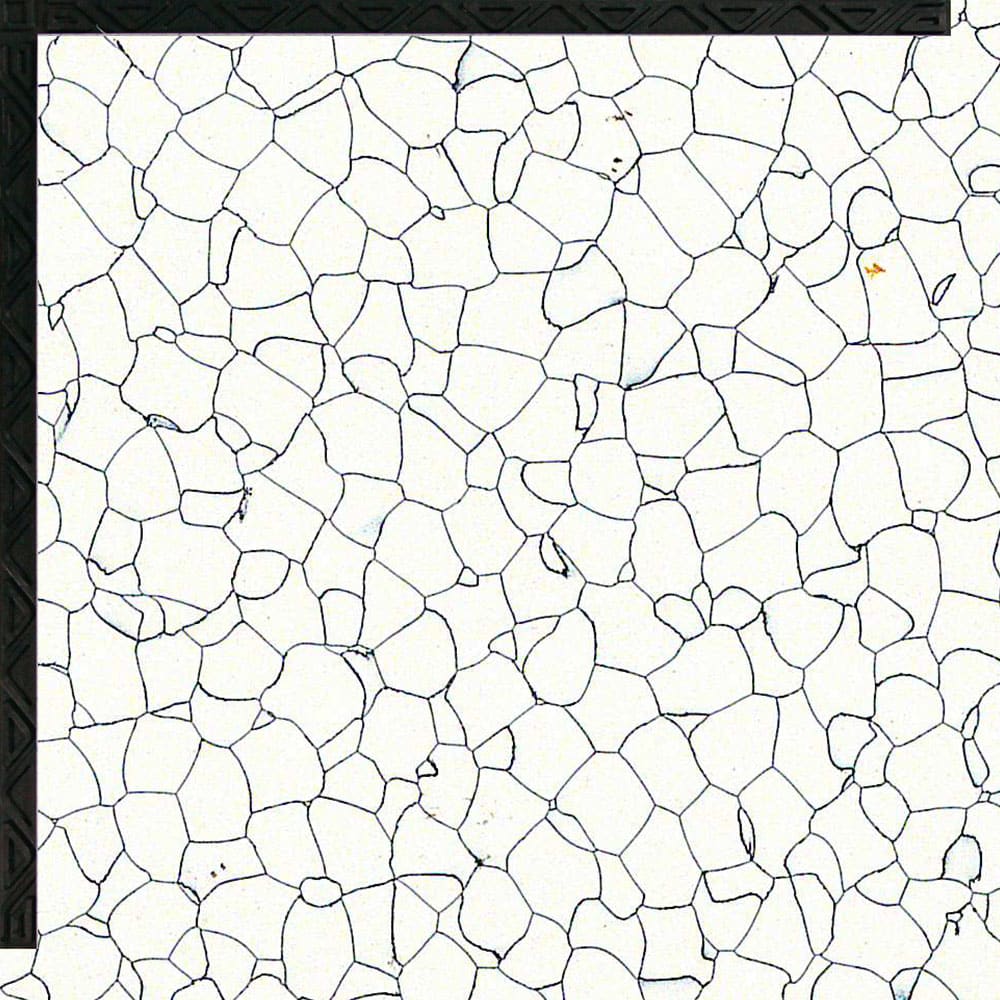

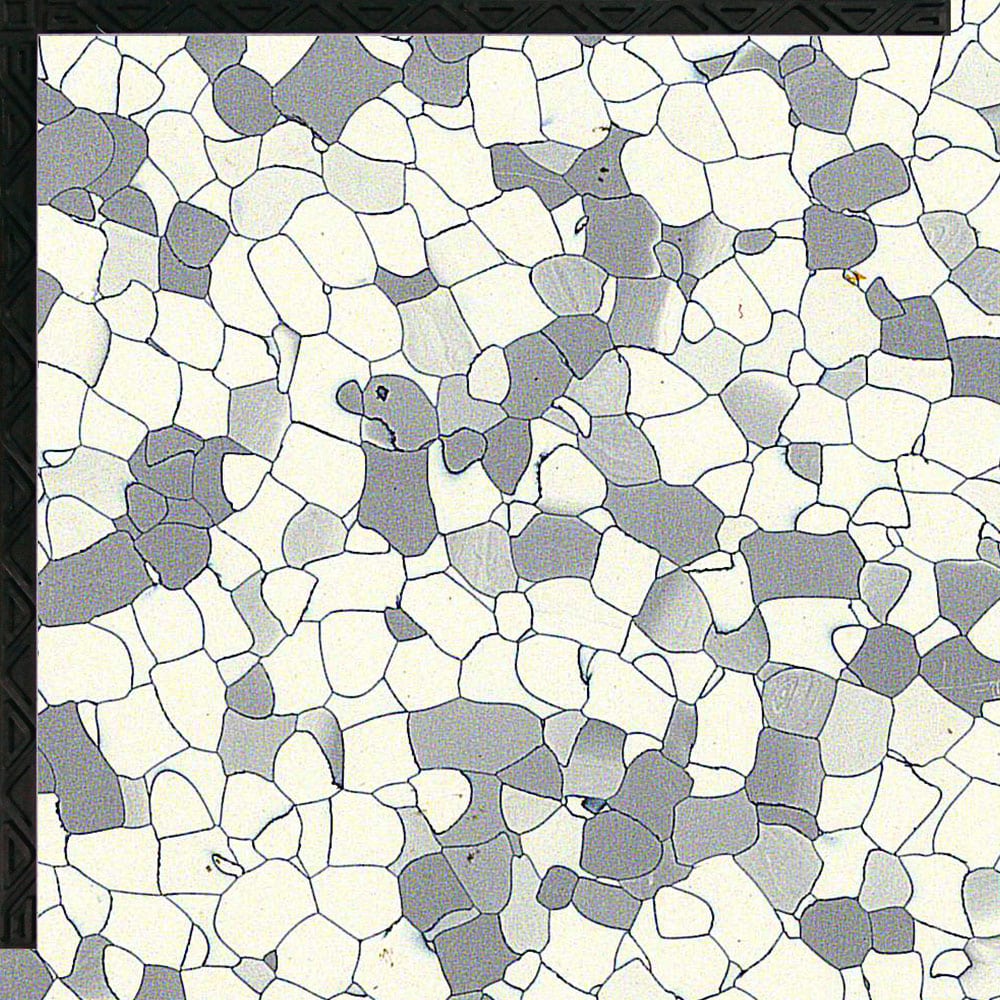

FreeStyle™ ESD Classic

FreeStyle™ ESD Classic

FreeStyle™ ESD Classic is the WORLD’S FIRST and ONLY Free-Floating, Static Control Flooring System Utilizing a Patented “Hidden Zipper-Lock” Connection.

Pricing listed is per tile. Available in Conductive and Dissipative.

Additional Information

Model
ESDFC
Notes
Lead Time:
$36.50
$36.50
Sale Sold out
Color
Style
View full details

Interlocking Tabs Make Installation A Snap:

FreeStyle™ ESD Classic is available in static dissipative or conductive Meg-Ohm ratings and is easy to install with no need for conductive adhesives.

  • No Adhesive Required
  • No Copper Grid required
  • Interlocks Provide Tile-to-Tile Electrical Connection
  • Install over Existing Floors
  • Eliminate Downtime
Physical Properties

Dimensions

18.5” x 18.5”

Thickness of Interlocking

FS2: 0.375”, FS4: 0.34”

Effective Coverage

2.38 square feet per tile

Weight of Interlocking

FS2: 6.5 lbs; FS4: 5.4 lbs

Reference Specification

ASTM F-1700

Conforms

Critical Radiant Flux
ASTM E-648

> 1.0 W/cm2
Meets Class I Fire Rating

Smoke Density
ASTM E-662

≤ 450

Chemical Resistance
ASTM F-925

Excellent resistance to
Acids, Alkalis, Household
Chemicals

Recycled Content
(Interlocking Tile Only)

Minimum 20%
Post-Industrial Materials

Weight of Glue-Down

1.95 lbs

Thickness of Glue-Down

2mm

Electrical Properties

FreeStyle ESD Conductive

FreeStyle ESD Dissipative

Electrical Resistance
ESD S7.1 at 15% RH

2.5 x 10^4 to 10^6 Ohms

10^6 to 1.0 x 10^9 Ohms

Electrostatic Propensity
ESD STM 97.2 at 15% RH
AATCC-134 at 15% RH

<10 volts

<30 volts

Static Decay Method 4046

at 15% RH

<0.01 seconds

<0.02 seconds

Limited 10-Year Warranty

FreeStyle™ ESD is a durable floor covering and is backed by a lifetime electrical and 10-year limited wear warranty.

Installation-Interlocking

FreeStyle™ ESD Classic is a 18.5" x 18.5" (2.38 sq. ft./tile) interlocking floor tile. A plastic deadhead hammer or carpet seam roller should be used for joining these products. Tiles can be cut using a vinyl-tile cutter, circular saw, jig saw, or other power saws. FreeStyle™ ESD Classic is a free-lay system and does not require the use of adhesives. FreeStyle™ ESD Classic may be installed over concrete, wood, rubber, vinyl, composite tiles, and other standard floors. A 3/8" gap around the perimeter should be left to allow for expansion and contraction. The floor must be grounded properly to ensure proper discharge of static charges.

Installation-Gluedown

The 2 millimeter top surface of FreeStyle™ ESD is also available as a glue down product GroundFloor™ESD Classic using a conductive adhesive. For glue down installations, the surface must be properly prepared and free of moisture, dirt, oils, and other foreign materials to ensure a reliable bond with the adhesive.

Regular Maintenance

FreeStyle™ ESD is easy to clean and maintain. The tiles can be cleaned with standard neutral cleansers. The tiles can be cleaned by hand using a mop or sponge. A power scrubber or buffer can also be used to clean particularly tough stains and soiling. Walk-behind auto-scrubbers can also be used in larger applications.

Solvent/Stain Resistance

FreeStyle™ ESD has been tested for solvent/stain resistance per ASTM F-925-96 against a number of fluids, such as oils, acids, solvents, and staining agents.
