SelecTile™ ESD

SelecTile™ ESD

SelecTile ESD™ is the most durable, resilient, and portable ESD flooring product available.

A free-floating surface with a unique interlocking tab system, this static-control flooring installs quickly and easily without the need for adhesives, copper strips, or underlayment.

_______________________

In Stock colors with no minimum: Black, Gray and Blue.

Non-stock colors with a 2,000 sq. ft. Minimum: Red, Green and Brown.

Pricing listed is per tile. Available in Conductive and Dissipative.

Additional Information

Model
SESD
Notes
Lead time:
$47.95
$47.95
Sale Sold out
Color
Style
View full details

SelecTile ESD™ is designed specifically for fork lift, pallet jack, heavy-load equipment and server rack environments. It is rugged, durable and versatile enough for a variety of installations. SelecTile ESD™ is the ideal solution for a facility that requires strong and robust flooring and can be installed on top of existing raised floor or on subfloor.

  • SelecTile™ ESD Offers

    • Free-lay flooring concept
    • Durability for high commercial traffic volumes
    • High indent resistance to withstand heavy loads
    • Comfort under foot
    • 10-Year Commercial Warranty
    • Lifetime Electrical Warranty

  • ESD Environments

    • Electronics Manufacturing
    • Pick & Place/Reflow/Wave Solder/SMT
    • Hardware Repair Rooms
    • Shipping/Receiving/Loading Docks
    • Stock/Parts/Inventory Supply Rooms

  • Mission Control

    • Raised Access Floor Environments
    • Central Apparatus/Master Control/Server Rooms
    • Federal/State/Municipal Operation Centers
    • Command - Control/Emergency Operations Centers
    • Security Shelters and Guard Booths
    • Airport Equipment and Test Repair Zones
    • TV/Radio Production Studios

  • SelecTile™ ESD and LEED™

    • Minimum 20 percent Recycled Content
    • 100% Recyclable
    • Take Back Program

    • SelecTile™ ESD is easily installed over problem subloors including:
    • Concrete with high moisture emissions
    • Cracked and stained concrete
    • Difficult to remove old flooring
    • Minimal down-time, disruption or loss of productivity
Product Specifications

Dimensions

24" x 24"

Thickness

0.22"

Weight

6 + 0.1 lbs/tile

Connection

Interlocking Edges

Abrasive Resistance

ASTM TABER METHOD

600 gram wheel - 1,000 cycles

<0.4 Grams weight loss

Effective Coverage

3.92 Ft2/Tile

Reference Specification

ASTM F-1306

Exceeds Requirement

Critical Radiant Flux

ASTM E-648

>= 0.45 W/cm2

Meets Class I Fire Rating

Smoke Density

ASTM E-662

<= 450

Coefficient of Friction

ASTM D-2047

conforms to ADA specifications

0.7 - 0.8

(depending on surface)

Recycled Content

Minimum 20%

Post-Industrial Materials

Electrostatic Properties

SelecTile™ ESD CONDUCTIVE

SelecTile™ ESD DISSIPATIVE

Electrical Resistance

ESD STM 7.1 at 12% and 50% RH

<1.0 x 10^6 Ohms

1 x 10^6

to 1 x 10^9 Ohms

Electrical Propensity

ESD STM 97.2 at 12% RH

< 20 volts

< 50 volts

LIMITED 10-YEAR WARRANTY

SelecTile™ ESD is manufactured to provide a durable and long-lasting floor covering under a range of temperature and exposure conditions and is backed by a lifetime electrical and 10-year limited warranty.

INSTALLATION

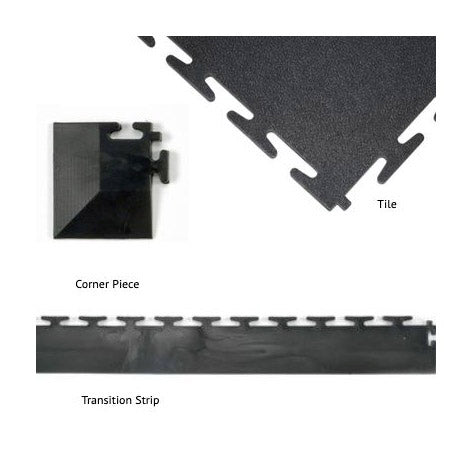

SelecTile™ ESD is a 23.75" x 23.75" (3.92 ft^2/tile) interlocking floor tile available with a 24" x 2" interlocking transition strip and 2" x 2" corners. A deadblow hammer should be used for joining these products. Tiles can be cut using a utility knife, vinyl-tile cutter or jig saw. SelecTile™ ESD is a free-lay system and does not require the use of adhesives.

SelecTile™ ESD may be installed over concrete, wood, asbestos tile, rubber, vinyl composite tiles, and other standard floors. A 3/8" gap around the perimeter should be left to allow for expansion and contraction. The floor must be grounded properly to ensure proper discharge of static charges.

REGULAR MAINTENANCE

SelecTile™ ESD is easy to clean and maintain. The tiles can be cleaned with ammonia and water or other acceptable cleansers. The tiles can be cleaned by hand using a mop or sponge. A power scrubber or buffer can also be used to clean particularly tough stains and soiling.

ARCHITECTURAL SPECIFICATIONS

SelecTile™ ESD should have an electrical resistance of between 2.5 x 10^4 and 1 x 10^6 Ohms for conductive flooring applications and 1 x 10^6 to 1 x 10^9 Ohms for static dissipative applications as measured pursuant to ANSI/ESD 7.1. The product shall be an interlocking floor tile and be available in 23.75" x 23.75" squares (nominal). The product shall offer a 10-Year Limited Warranty against wear. The tiles will be installed as a free-lay product without adhesives.
