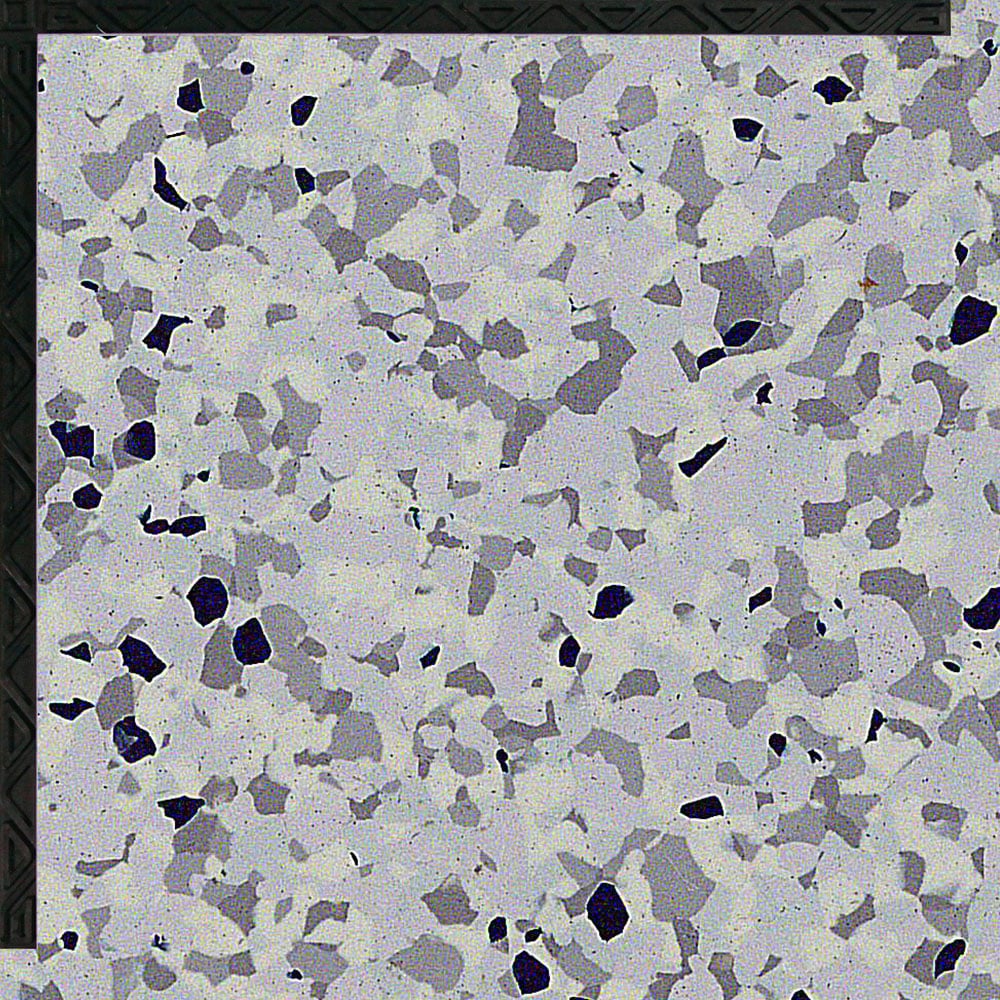

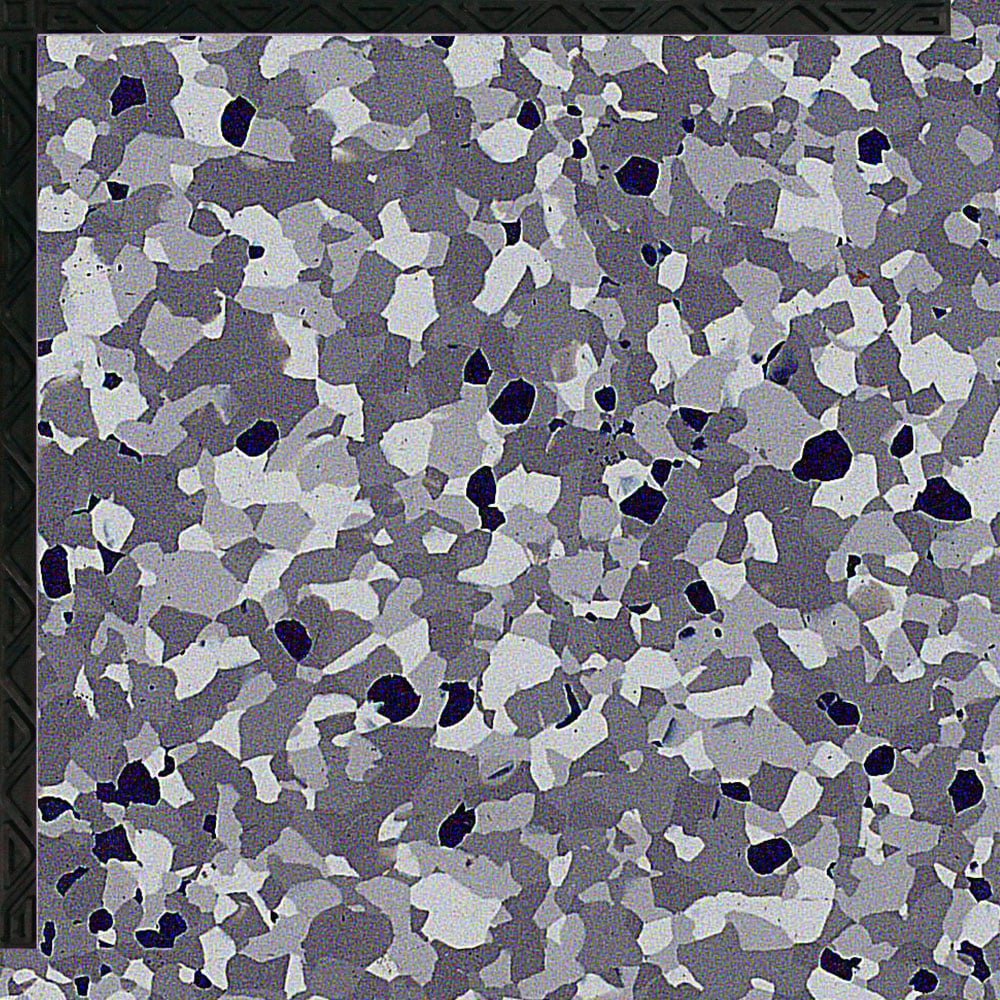

FreeStyle ESD PLUS™

FreeStyle ESD PLUS™

FreeStyle ESD PLUS™ is a Free-Floating ESD Flooring System with a patented hidden interlock PLUS an advanced polymer surface for easy maintenance.

Pricing listed is per tile. Available in Conductive and Dissipative.

Additional Information

Model
FESDP
Notes
Lead time:
$39.95
$39.95
Sale Sold out

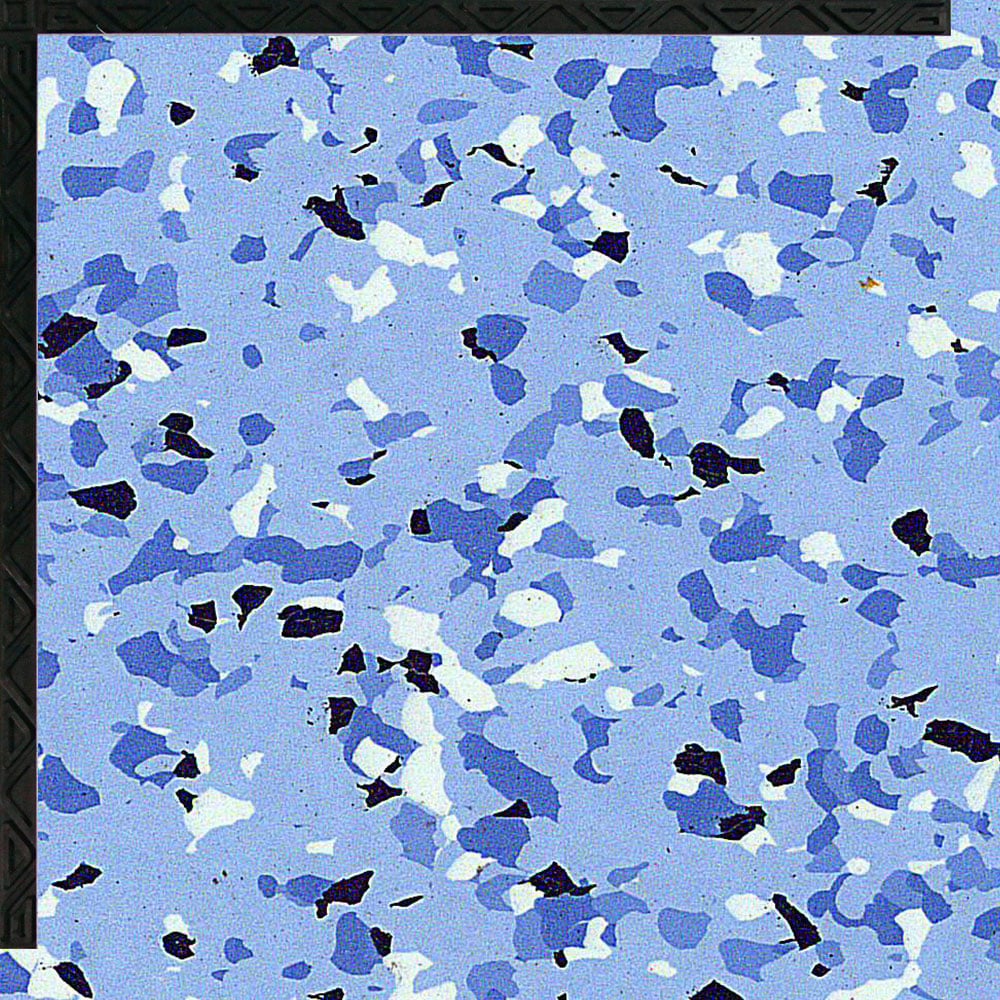

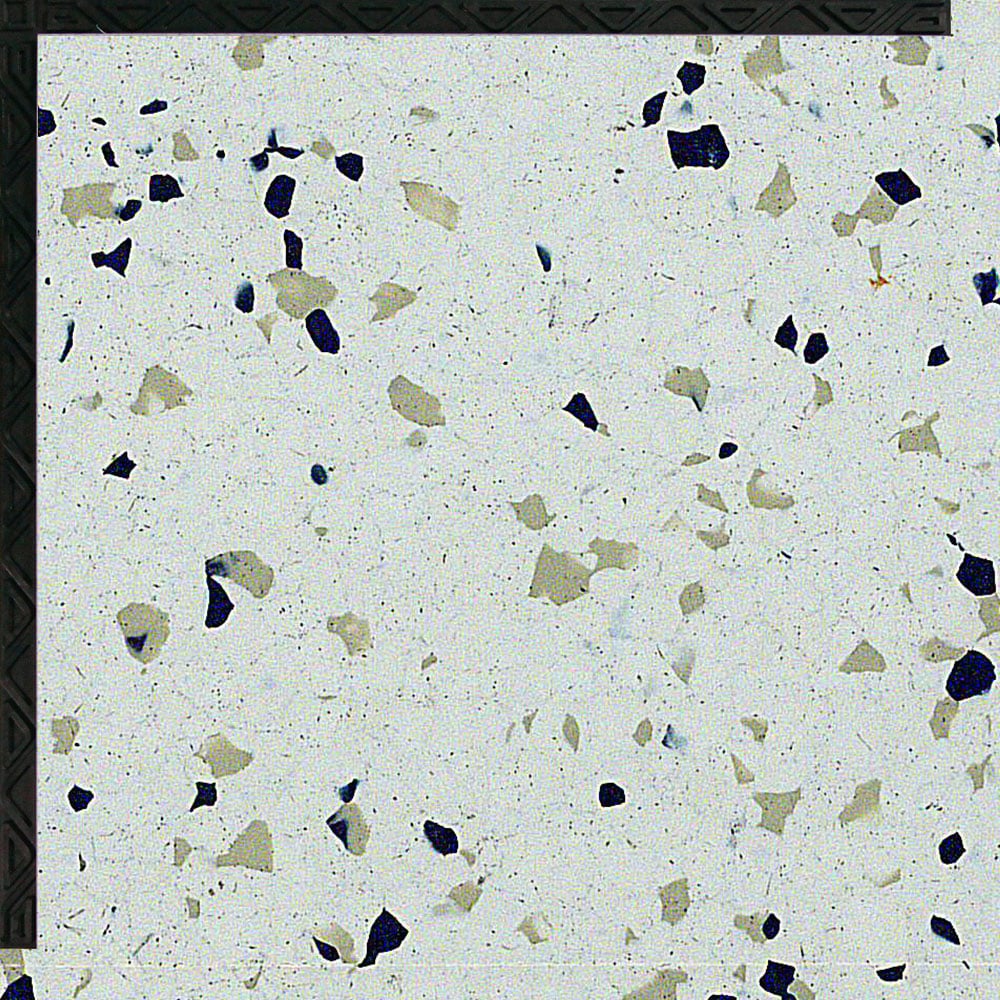

Color
Style
View full details

Interlocking Tabs Make Installation A Snap:

FreeStyle ESD PLUS™ is available in static dissipative or conductive Meg-Ohm ratings and is easy to install without the need for conductive adhesives or copper foil. FreeStyle ESD PLUS™ has a state of the art polymer surface that provides best in class maintainability.

  • No Adhesive or Copper Foil Required
  • No Copper Grid Required
  • Interlocks Provide Tile-to-Tile Electrical Connection
  • Install Over Existing Floors
  • Eliminate Downtime
  • Advanced Polymer Surface for Easy Maintenance
Physical Properties

Dimensions

18.5” x 18.5”

Thickness of Interlocking

FS2: 0.375”, FS4: 0.34”

Thickness of Glue Down

2 mm

Effective Coverage

2.38 square feet per tile

Weight of Interlocking

FS2: 6.5 lbs; FS4: 5.4 lbs

Weight of Glue Down

1.4 lbs

Reference Specification
ASTM F-1700

Conforms

Critical Radiant Flux
ASTM E-648

> 1.0 W/cm2
Meets Class I Fire Rating

Smoke Density
ASTM E-662

≤ 450

Chemical Resistance
ASTM F-925

Excellent resistance to
Acids, Alkalis, Household
Chemicals

Recycled Content
(Interlocking Tile
Only)

Minimum 20%
Post-Industrial Materials

Electrical Properties

FreeStyle
Conductive

FreeStyle
Dissipative

Electrical
Resistance
ESD S7.1
at 15% RH

2.5 x 10^4 to
10^6 Ohms

10^6 to 1.0 x 10^9 Ohms

Electrostatic
Propensity

ESD STM 97.2 AATCC-134 at 15% RH

<10 volts

<30 volts

Static Decay
Method 4046
at 15% RH

< 0.01 seconds

< 0.02 seconds

Grounding

Concrete Floor
Access Floor

Every 1000 Sq. Ft.
Every 3000 Sq. Ft.

Warranty

FreeStyle ESD PLUS™ is manufactured to provide a durable and long-lasting floor covering under a range of temperature and exposure conditions and is backed by a Lifetime Electrical and a 10-Year limited warranty against wear.

Installation-Interlocking

FreeStyle ESD PLUS™ is a 18.5" square (2.38 sq. ft./tile) interlocking floor tile. A plastic deadhead hammer or a carpet seam roller should be used for joining these products. Tiles can be cut using a vinyl-tile cutter, circular saw, jig saw, or other power saws. FreeStyle ESD PLUS™ is a free-lay system and does not require the use of adhesives. FreeStyle ESD PLUS™ may be installed over concrete, wood, asbestos tile, rubber, vinyl, composite tiles, and other standard floors. A 3/8" gap around the perimeter and along any other vertical surface should be left to allow for expansion and contraction. The floor must be grounded properly to ensure proper discharge of static charges.

Regular Maintenance

FreeStyle ESD PLUS™ is easy to clean and maintain. The tiles should be cleaned with an ESD cleaner. We recommend our ProtectOhm cleaner for best results. The tiles can be cleaned by hand using a mop or sponge. A power scrubber or buffer can also be used to clean particularly tough stains and soiling.

Installation-Gluedown

FreeStyle ESD PLUS™ is also available in top-sheet-only for direct glue down product GroundFloor™ ESD PLUS using a conductive adhesive. For glue down installation, the surface must be properly prepared and free of moisture, dirt, oils, and other foreign materials to ensure a reliable bond with the adhesive.

Architectural Specifications

FreeStyle ESD PLUS™ Resilient Flooring should have an electrical resistance of between 2.5 x 10^4 and 1 x 10^6 Ohms for conductive flooring applications and 1 x 10^6 to 1.0 x 10^9 Ohms for static dissipative applications as measured pursuant to ANSI/ESD 7.1. The product shall be an interlocking floor tile and be available in 18.5" x 18.5" squares (nominal). This product shall offer a lifetime electrical and 10 year limited wear warranty. The tiles shall be installed as a free-lay product whiteout adhesives.

Solvent/Stain Resistance

FreeStyle ESD PLUS™ has been tested for solvent/stain resistance per ASTM F-925-96 against a number of fluids, such as oils, acids, solvents, and staining agent.
