Solid Aluminum Cleanroom Raised Flooring Kit
Solid Aluminum Cleanroom Raised Flooring Kit
Couldn't load pickup availability
Quick Overview

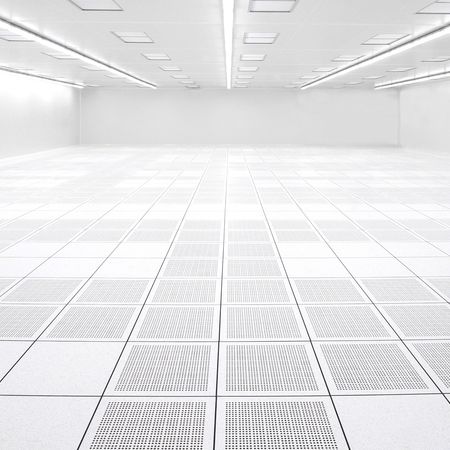

This system is the ideal solution for class M1 applications, with trimless edges. This access floor system consists of complete die cast aluminum components that are typically used in hi-tech environments such as biomedical, microelectronic, pharmaceutical and laboratory facilities.
Select finished floor height above.
Product Data Sheet
Understructure Data Sheet
Additional Information
- Description

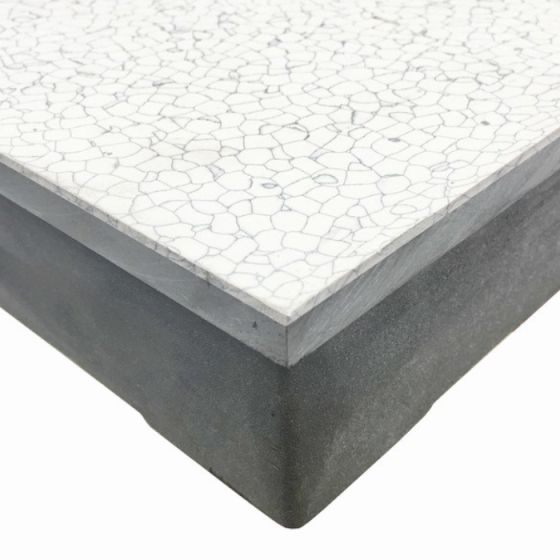

Surface: High pressure laminate.
Color: Gray Starlite, the most popular color for raised floors. This is an attractive finish, made popular on raised floors because of its low maintenance and static dissipative properties.
System rating: 3000 lbs per square inch.
- A minimum purchase of 152 square feet is required.
- Pricing listed above is per square foot. (Purchased in 4 ft increments.)
- Freight and Installation are not included. -- Installation instructions available online.
______________________________________________
In-Depth Product Description

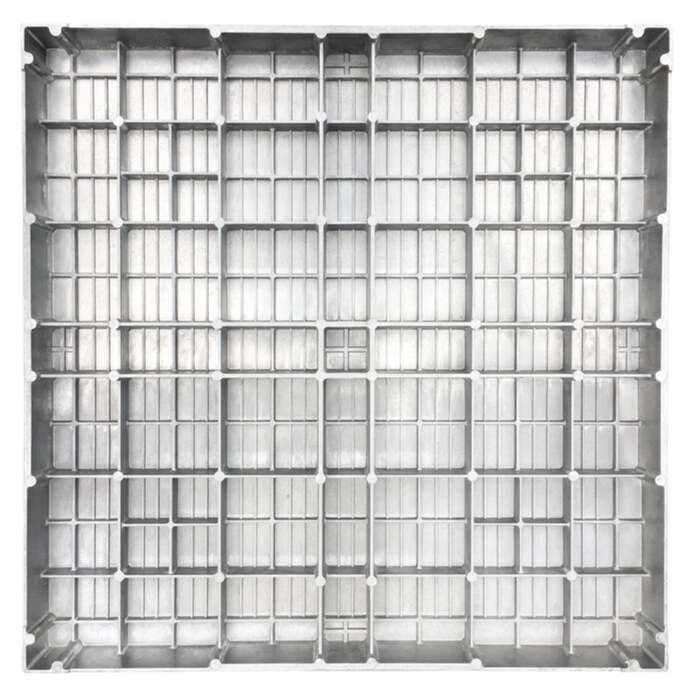

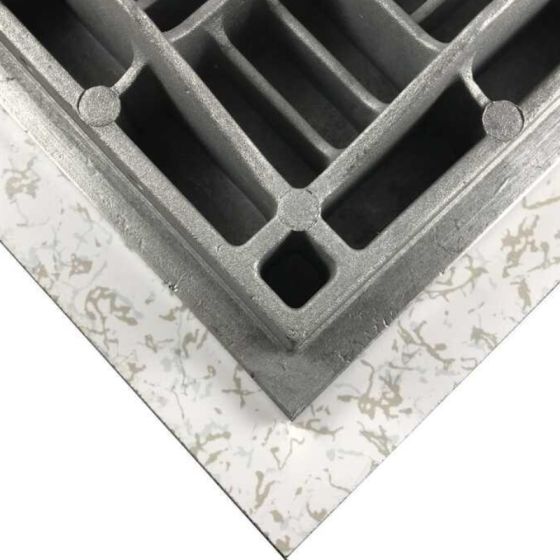

This aluminum panel system kit consists of panels that are 24” x 24” and are lightweight for ease of handling.
These rigid die-cast aluminum panels meet class A fire ratings and contain no ferrous materials to disrupt magnetic fields. A conductive gasket ensures continuous conductivity.
The kit includes the adhesive that holds the pedestal bases to the sub-floor, the pedestal assemblies consisting of an all-aluminum base and adjustable head (1" up and 1" down), 2 ft stringers with stainless steel screws and the 24” x 24” panels (which fit on the pedestal head.)
______________________________________________
By purchasing and installing this floor, the purchaser assumes all liability of complying with federal, state and local building code compliance, fire prevention, ADA Accessibility and Seismic Bracing or any other building code requirement enforced in a customer’s local area. This includes, but is not limited to Reservations, Parishes and County Jurisdictions.
