PlenaForm® is a flexible, snap together, air flow baffle system that helps to solve dynamic thermal imbalances under the raised floor in data centers.
Snap together, flexible air flow baffle system. Baffle size: 24"H x 48" W x .040"D.
Kit includes 12 baffles, 88 cable ties and 44 rivets.
Additional Information
- Description

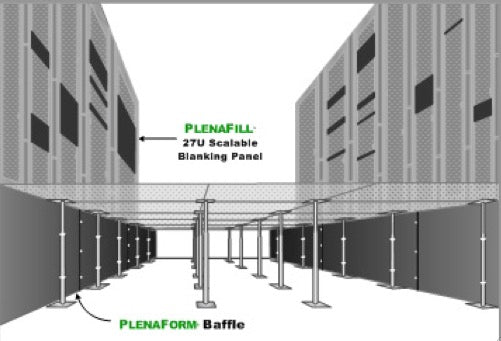

PlenaForm® is a system to guide and direct cold air to where it is needed. This system will guide the cold air and keep it “fenced” in using under-floor barriers.

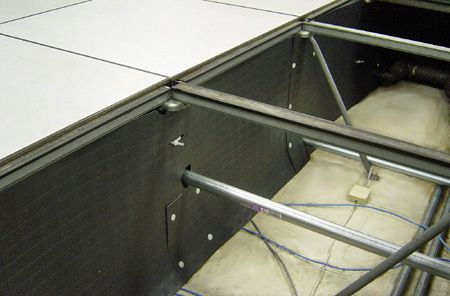

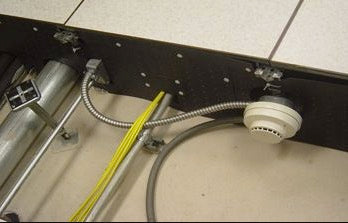

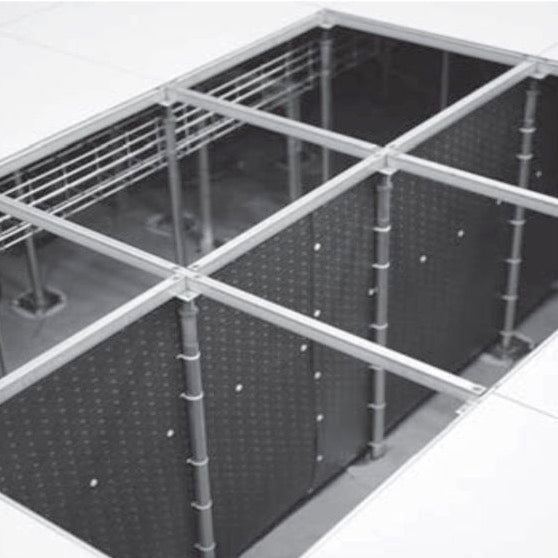

The flame retardant baffles are scored both vertically and horizontally so sections can be removed or added onto to meet any height or width requirement. All angles of bend radius may be attained, including inside and outside mounting to raised floor pedestals. It has a continuous punch-out hole pattern which allows attachment to any style raised floor pedestal at any height or width location with cable ties.
PlenaForm® baffles are die-cut from a polypropylene compound that is inert, non-conductive, and non-hygroscopic with a UL-VO 94 rating.
Each baffle is 24"H x 48"W x .040"D.
One PlenaForm® Kit comes with 12 baffles and 88 cable ties and 44 rivets.
Ordering guide:
The chart below reflects raised floor heights and the amount one kit will cover:
6" = 186 Linear Feet
12" = 93 Linear Feet
18" = 62 Linear Feet
24" = 46.5 Linear Feet
